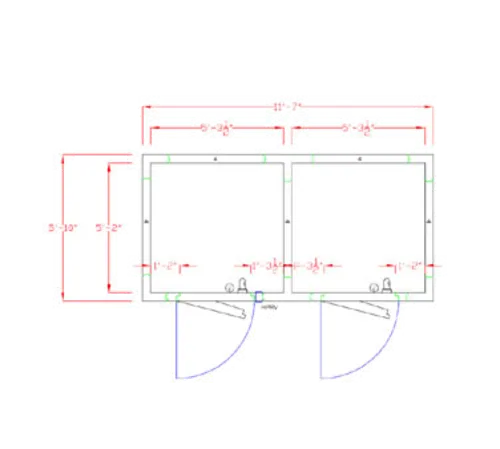

The American Panel Corporation 6X12-I is a self-contained walk-in combination cooler and freezer, featuring a 50/50 split design. With dimensions of 7'-6" H x 11'-7" W x 5'-10" D, this unit is ideal for indoor use. It includes foamed-in-place 4" urethane floor panels in the freezer section and a floorless design on vinyl screed in the cooler section. The interior and exterior are constructed from durable acrylume, ensuring longevity and ease of maintenance.
This model is equipped with a hinged door featuring camlift hinges for smooth operation. The Intelligent Controller (IC) allows for precise temperature management, while a vapor-proof light enhances visibility inside the unit. The refrigeration system includes a 1 HP low-temperature freezer capable of reaching -10°F and a 1/2 HP medium-temperature cooler maintaining 35°F.
The cooler's condensing unit operates on 115v/60/1-ph with a current draw of 14.8 amps, while the evaporator runs on 115v/60/1-ph at 0.5 amps. The freezer's condensing unit operates on 208v/60/1-ph with 12.6 amps, and the evaporator features fans at 4.3 amps and heaters at 0.9 amps. The refrigeration system comes standard with a Heatcraft Quick Response Controller, ensuring efficient performance.
