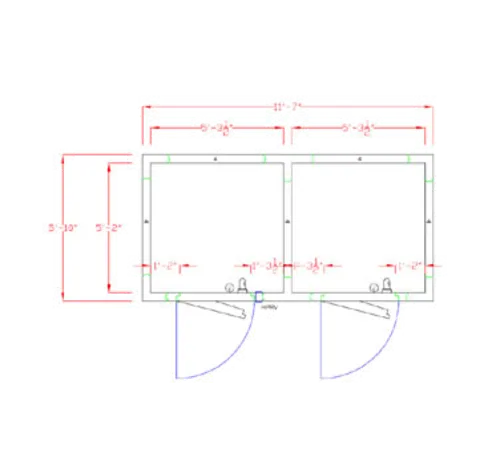

The American Panel Corporation 6X12-O is a versatile walk-in combination cooler and freezer designed for outdoor use, featuring a 50/50 split configuration. With dimensions of 7'-6" H x 11'-7" W x 5'-10" D, it offers ample storage space. The cooler section is floorless on a vinyl screed, while the freezer is equipped with durable, foamed-in-place 4" urethane floor panels.
Constructed with acrylume for both interior and exterior, this unit includes a hinged door with camlift hinges for easy access. A dial thermometer and vapor-proof light enhance usability and visibility. The refrigeration system is efficient and pre-charged, utilizing R448a refrigerant.
The cooler operates at a medium temperature of 35°F with a 1/2 HP hermetic condensing unit (115v/60/1-ph, 14.8 amps) and evaporator (115v/60/1-ph, 0.5 amps). The freezer maintains low temperatures at -10°F, powered by a 1-1/2 HP hermetic condensing unit (208v/60/1-ph, 12.6 amps) and evaporator (208v/60/1-ph, 0.9 amps for fans, 4.3 amps for heaters).
Additional features include winterization controls and a Heatcraft Quick Response Controller for optimal performance. This combination cooler/freezer is ideal for businesses requiring reliable temperature-controlled storage.
