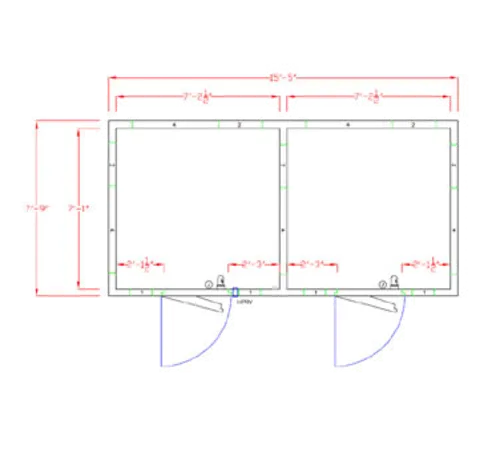

The American Panel Corporation 8X16-I is a self-contained walk-in combination cooler and freezer, featuring a 50/50 split design. With dimensions of 7'-6" H x 15'-5" W x 7'-9" D, this unit is ideal for indoor use. It includes foamed-in-place 4" urethane floor panels in the freezer section and a floorless design on vinyl screed in the cooler section. The interior and exterior are constructed from durable acrylume, ensuring longevity and ease of maintenance.
This model is equipped with a hinged door featuring camlift hinges for easy access. The Intelligent Controller (IC) allows for precise temperature management, while a vapor-proof light enhances visibility inside the unit. The refrigeration system includes a 1-1/2 HP low-temperature freezer capable of reaching -10°F and a 3/4 HP medium-temperature cooler maintaining 35°F.
The freezer's condensing unit operates at 208v/60/1-ph with a current draw of 12.6 amps, while the evaporator fans draw 0.9 amps and heaters 4.3 amps. The cooler's condensing unit also runs on 208v/60/1-ph, drawing 12.7 amps, with the evaporator consuming 1 amp. The refrigeration system comes standard with a Heatcraft Quick Response Controller, ensuring efficient operation.
