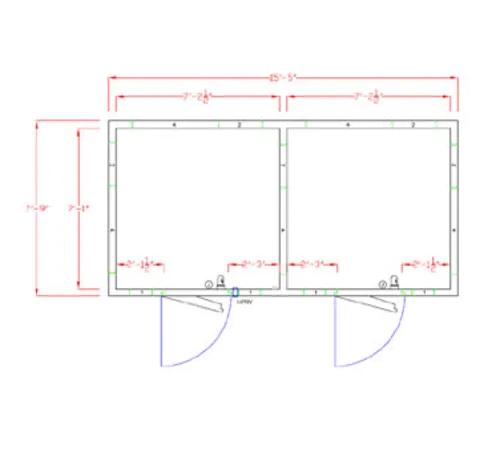

The American Panel Corporation 8X16-O is a versatile Walk-In Combination Cooler and Freezer designed for outdoor use, featuring a 50/50 split configuration. With dimensions of 7'-6" H x 15'-5" W x 7'-9" D, it is built for efficiency and durability. The freezer section includes foamed-in-place 4" urethane floor panels, while the cooler section is floorless with a vinyl screed.
This unit boasts a robust vinyl membrane rain roof and is constructed with acrylume for both interior and exterior surfaces. The hinged door is equipped with camlift hinges for easy access. A dial thermometer and vapor-proof light enhance usability and visibility.
The refrigeration system includes a 2 HP low-temperature freezer capable of reaching -10°F and a 3/4 HP medium-temperature cooler maintaining 35°F. Both systems utilize a hermetic pre-charged remote quick-connect R448a refrigeration setup. The freezer's condensing unit operates at 208v/60/1-ph with 12.6 amps, while the evaporator fans draw 0.9 amps and heaters 4.3 amps. The cooler's condensing unit also runs at 208v/60/1-ph with 12.7 amps, and the evaporator consumes 1 amp.
Additional features include winterization controls and a Heatcraft Quick Response Controller as standard, ensuring optimal performance in various conditions.
