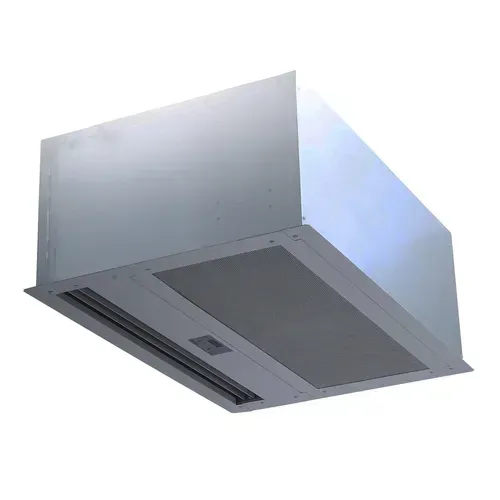

Berner ARC16-1060E-1

Description

The Berner ARC16-1060E-1 is a high-performance air curtain designed for architectural applications. This recessed model measures 60 inches in length and features electric heating for enhanced comfort. Equipped with a powerful 1 hp motor, it operates at two speeds to effectively create a barrier against air infiltration. The Intelliswitch controller allows for easy operation and customization. Its hinged white aluminum bottom access panel facilitates convenient maintenance. Suitable for mounting heights of up to 16 feet, this single-phase unit delivers 14kW of heating power. cULus certified, the Berner ARC16-1060E-1 is proudly made in the USA, ensuring quality and reliability.

Options

Bottom exterior finish

Stainless steel exposed bottom cover, add "SS" after voltage code (contact factory for lead time) +$244.44 White aluminum housing, standard Custom color (from standard color chart) exposed bottom cover, add "CC" after voltage code (contact factory for lead time) +$196.06

Electrical accessories

Handheld Infrared Remote Control, for use with Intelliswitch +$95.24 Wi-Fi Controller – Factory Installed (add WCA to model #), enables wireless control of the air curtain(s) via the Berner App. NOTE: Requires on-site, secure Wi-Fi connection (provided by others), the Berner App – allows air curtain(s) to be programmed & operated via smart phone +$276.01 Intelliswitch Display Kit – Remote Mounted Kit, with 20' cable for LED display +$111.53 Serial Connection Cable, for programming multiple air curtains from a single Intelliswitch +$140.55

Thermostat

Thermostat, 2-pole, remote mounted +$43.80

Note

Reduced KW available, contact factory Models with 2 motors are available, contact factory

What is included

Warranty: Two year parts warranty (heated units)
Special freight note: If special freight fees are requested, (See below) all applicable fees will be added to the invoice; fees subject to change; contact factory for addition information.
Freight Note: NOTE:Contact Name / Phone Number and/or Email required at time of order

Voltage

208v/60/1-ph 220v/50/1-ph (Max. 15 kw) 240v/60/1-ph

Reviews

There are no reviews yet for this product.

Brand	Berner
Made in	USA
Horsepower	1 HP
Speeds	2
Certifications	cULus
Heat Type	Electric Heat
Mounting	Mounting Heights up to 16'
Number of Motors	1
Series	Architectural Series
Style	Recessed
Width (in)	60.00
Height (in)	15.00
Depth (in)	26.00
Length (in)	60" Long
Weight	171.00
