Berner ARC16-3144A-1

Description

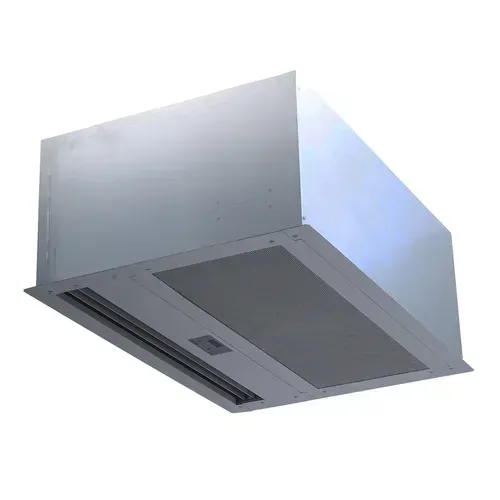

The Berner ARC16-3144A-1 is a high-performance air curtain designed for seamless integration into architectural spaces. This recessed model measures 144 inches in length and features three powerful 1 hp motors, providing efficient air flow with two speed settings. The Intelliswitch controller allows for easy operation and customization. Its hinged white aluminum bottom access panel ensures convenient maintenance. Suitable for mounting heights of up to 16 feet, this unheated air door operates on a single phase and is cULus certified, guaranteeing safety and reliability. Proudly made in the USA, the Berner ARC16-3144A-1 combines functionality with a sleek design to enhance any environment.

Options

Bottom exterior finish

Custom color (from standard color chart) exposed bottom cover add, "CC" after voltage code (contact factory for lead time) +$470.55 Stainless steel exposed bottom cover, add "SS" after voltage code (contact factory for lead time) +$586.66 White aluminum housing, standard

Electrical accessories

Handheld Infrared Remote Control, for use with Intelliswitch +$95.24 Wi-Fi Controller – Factory Installed (add WCA to model #), enables wireless control of the air curtain(s) via the Berner App. NOTE: Requires on-site, secure Wi-Fi connection (provided by others), the Berner App – allows air curtain(s) to be programmed & operated via smart phone +$276.01 Intelliswitch Display Kit – Remote Mounted Kit, with 20' cable for LED display +$111.53 Serial Connection Cable, for programming multiple air curtains from a single Intelliswitch +$140.55

What is included

Special freight note: If special freight fees are requested, (See below) all applicable fees will be added to the invoice; fees subject to change; contact factory for addition information.
Warranty: Five year parts warranty (unheated units)
Freight Note: NOTE:Contact Name / Phone Number and/or Email required at time of order

Reviews

There are no reviews yet for this product.

Brand	Berner
Made in	USA
Horsepower	1 HP
Speeds	2
Number of Motors	3
Certifications	cULus
Mounting	Mounting Heights up to 16'
Heat Type	Unheated
Series	Architectural Series
Style	Recessed
Width (in)	144.00
Height (in)	15.00
Depth (in)	26.00
Length (in)	144" Long
Weight	411.00
