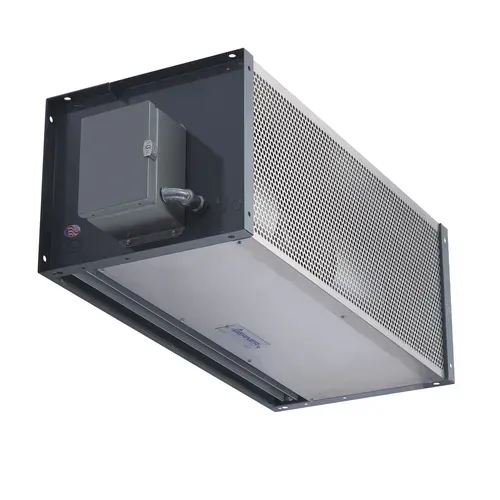

Berner IDC12-3132E

Description

The Berner IDC12-3132E is an Industrial Series Direct Drive Air Curtain designed for effective environmental separation and insect protection. Measuring 132 inches in length, it features three powerful 1/2 hp motors, providing robust performance for doorways up to 12 feet high for environmental separation and 10 feet high for insect control. The unit includes an inlet screen for enhanced airflow management and can be customized with specified housing options for interior mounting. With an electric heat output of 42kW, this air curtain ensures optimal temperature control. cULus certified and proudly made in the USA, the Berner IDC12-3132E combines durability and efficiency for industrial applications.

Options

Optional switches

NEMA 4 Plunger Style Door Switch +$156.34

Reduced KW

Note: Reduced KW available

Options and accessories

Correctional tamper proof package, add suffix "-TP" to model no. +$153.28 Vibration isolators, (4) required per unit (priced per isolator, for quantities between 1 - 16) +$91.66 Vibration isolators, (4) required per unit (priced per isolator, for quantities 17+) +$70.79

Thermostats

Industrial capillary bulb thermostat, used to sense outdoor air temperature, can be use in conjunction with 9502DS2T-P +$220.50 Thermostat, 2-pole, factory installed +$102.35 Thermostat, 2-pole, remote mounted +$43.80

Housing finish

Gray powder coated housing, standard Stainless steel housing, add "SS" to model number +$1,019.52 Custom color housing, add "CC" to model number +$431.34

Filters

1/2" Aluminum Mesh Filter & Intake Grille for IDC12/IDC14, top & bottom frame, 132" length +$379.39 1/2" Aluminum Mesh Filter for IDC12/IDC14, top & bottom frame, replaces intake grille, 132" length +$304.02 1/2" Polywashable Filter & Intake Grille for IDC12/IDC14, top & bottom frame, 132" length +$342.22 1/2" Polywashable Filter for IDC12/IDC14, top & bottom frame, replaces intake grille, 132" length +$215.92

What is included

Warranty: Two year parts warranty (heated units)
Special freight note: If special freight fees are requested, (See below) all applicable fees will be added to the invoice; fees subject to change; contact factory for addition information.
Freight Note: NOTE:Contact Name / Phone Number and/or Email required at time of order

Reviews

There are no reviews yet for this product.

Brand	Berner
Made in	USA
Certifications	cULus
Number of Motors	2
Speeds	1
Heat Type	Unheated
Horsepower	1/5 HP
Mounting	Interior or Exterior Mounting
Series	Sanitation Series
Style	Low Profile
Width (in)	132.00
Length (in)	120" Long
Weight	424.00
