Berner IDC14-2078E

Description

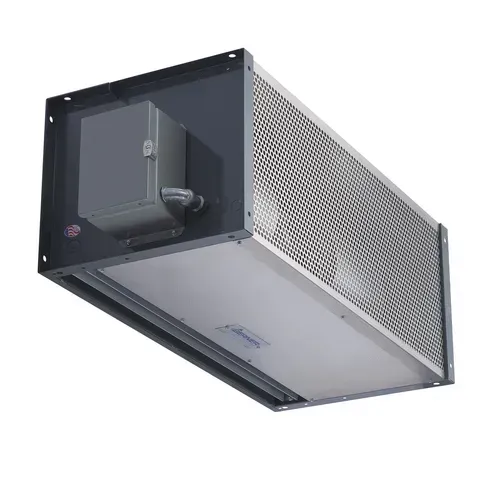

The Berner IDC14-2078E is an Industrial Series Direct Drive Air Curtain designed for effective environmental separation and insect protection. Measuring 78 inches in length, this air curtain features electric heating and is equipped with two powerful 1 hp motors, making it suitable for door heights up to 14 feet for environmental separation and 12 feet for insect protection. It includes an inlet screen for enhanced performance and can be customized with specified housing and interior mounting options. With a heating capacity of 28kW, this unit is cUlus certified and proudly made in the USA, ensuring reliability and quality for industrial applications.

Options

Optional switches

NEMA 4 Plunger Style Door Switch +$156.34

Reduced KW

Note: Reduced KW available

Options and accessories

Correctional tamper proof package, add suffix "-TP" to model no. +$153.28 Vibration isolators, (4) required per unit (priced per isolator, for quantities between 1 - 16) +$91.66 Vibration isolators, (4) required per unit (priced per isolator, for quantities 17+) +$70.79

Thermostats

Industrial capillary bulb thermostat, used to sense outdoor air temperature, can be use in conjunction with 9502DS2T-P +$220.50 Thermostat, 2-pole, factory installed +$102.35 Thermostat, 2-pole, remote mounted +$43.80

Housing finish

Gray powder coated housing, standard Stainless steel housing, add "SS" to model number +$446.87 Custom color housing, add "CC" to model number +$254.88

Filters

1/2" Aluminum Mesh Filter & Intake Grille for IDC12/IDC14, top & bottom frame, 78" length +$258.70 1/2" Aluminum Mesh Filter for IDC12/IDC14, top & bottom frame, replaces intake grille, 78" length +$195.05 1/2" Polywashable Filter & Intake Grille for IDC12/IDC14, top & bottom frame, 78" length +$232.72 1/2" Polywashable Filter for IDC12/IDC14, top & bottom frame, replaces intake grille, 78" length +$146.16

What is included

Warranty: Two year parts warranty (heated units)
Special freight note: If special freight fees are requested, (See below) all applicable fees will be added to the invoice; fees subject to change; contact factory for addition information.
Freight Note: NOTE:Contact Name / Phone Number and/or Email required at time of order

Reviews

There are no reviews yet for this product.

Brand	Berner
Horsepower	1/2 HP
Made in	USA
Heat Type	Electric Heat
Number of Motors	2
Speeds	1
Mounting	Interior Mounting
Series	Industrial Series
Style	Direct Drive
Width (in)	78.00
Length (in)	120" Long
Weight	252.00
