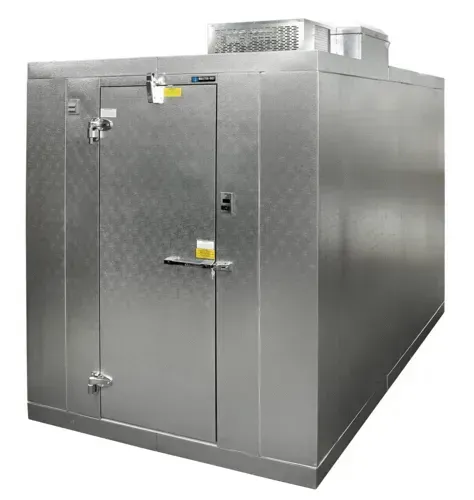

Master-Bilt QODB771012-C

Ramps & non-skid strips

Exterior Ramp, for walk-ins with floors +$465.55 Non-Skid Floor Strips, (Shipped loose) price per strip +$4.70

Lift gate delivery

Lift gate not applicable for panels. Panels to be hand off-loaded or forklift off-loaded +$100.00

Door size

Optional 30" door width +$75.67 Optional 36" door width +$75.67 Standard 26" door width

Standard Compressor Warranty

18 month limited parts and labor on Capsule Pak refrigeration systems, standard

Oudoor NOTE:

Outdoor walk-ins shipping to the state of Florida, Indiana or any other area requiring hurricane wind load ratings are NOT INCLUDED in the Quick Ship program, please contact factory for pricing

NOTE:

Contact factory regarding walk-ins shipping to California, Washington or Oregon as these likely will require seismic restraints & Quick Ship LEAD TIME WILL NOT APPLY

trim

Trim Strip, 3" x 3" x 8'7" angle galvanized for walk-in +$22.23 Trim Strip, 6" x 8'7" flat, galvanized for walk-in +$22.23

Light options

24" LED Light Fixture (Shipped Loose) +$269.75 48" LED Light Fixture (Shipped Loose) +$269.75 9" LED Light Fixture - 120 volt only (shipped loose) +$207.76

Extended Compressor Warranty

Optional Compressor Warranty extending to 5 years for 1 HP Capsule-Pak™ refrigeration, cooler +$198.00 Optional Compressor Warranty extending to 5 years for 3/4 HP Capsule-Pak™ refrigeration, cooler +$198.00 DECLINE Optional Compressor Warranty extending to 5 years

Freight

Contact factory for freight rate

Capsule Pak refrigeration

Capsule Pak™ Refrigeration System, cooler, ceiling mount, outdoor, 100 series, R-449A (IN LIEU of R290 system included in QS Series model description) +$112.86

What is included

Panel warranty: 15 year panel warranty, standard
Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
Standard Compressor Warranty: 18 month limited parts and labor on Capsule Pak refrigeration systems, standard

Door hinging

Door hinged on left Door hinged on right

Brand	Master-Bilt Products
Nominal Width	10 Feet
Nominal Depth	12 Feet
Refrigerant Type	R-449A
Compressor Location	Top Mounted
With Floor	Floor Included
Usage	Outdoor
Voltage	208/230 Volts
Width (in)	120.00
Height (in)	91.00
Depth (in)	144.00
Weight	2346.00
