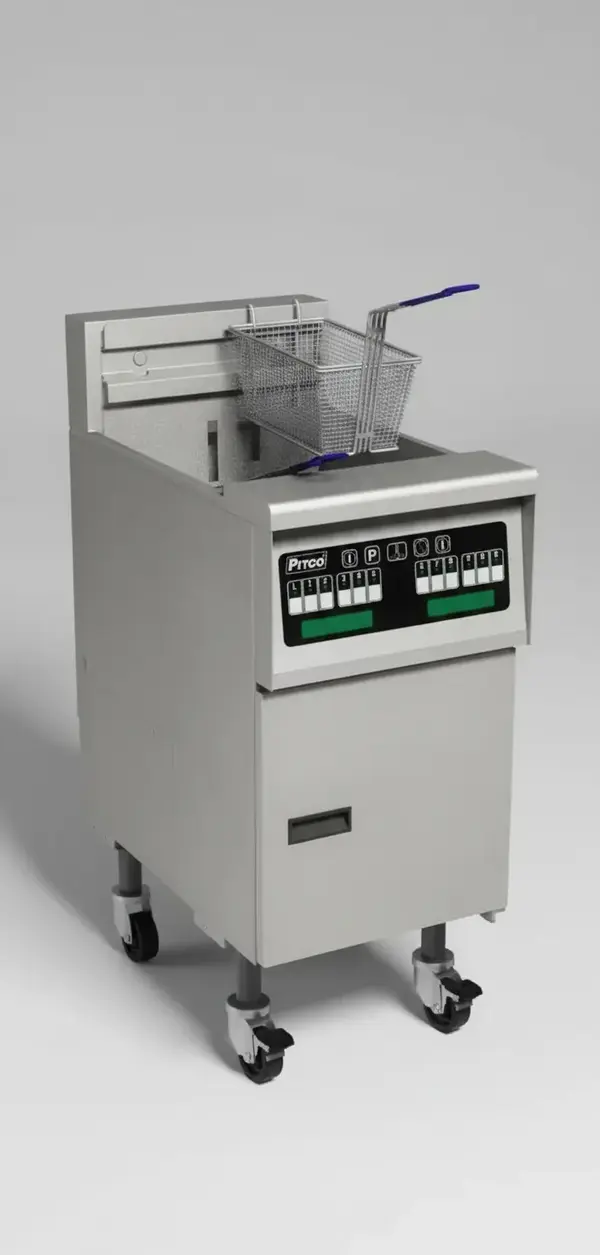

Pitco SE184R | austonmealer.com

Institutional package

Institutional Package; (electric) door latch assembly, 16ga. tank/front panel cover assembly, flanged legs, stainless back +$1,817.00

Startup program

Startup program, for each additional serial number at same location (submit on request at least 5 business days in advance on Pitco website, https://www.pitco.com/startup_request) priced per each +$106.00 Startup program, for first serial number (submit on request at least 5 business days in advance on Pitco website, https://www.pitco.com/startup_request) +$345.00

Standard baskets

Basket, (1) square/full size, 17-1/2" x 16-3/4" x 5-3/4" deep, side handle, regular mesh (shipped in lieu of std for models SG18, SE18, SSH75, fryer batteries shipped with (1) per fryer Basket, (2) oblong/twin size, 17-1/4" x 8-1/2" x 5-3/4" deep, front handle, regular mesh (shipped std for models 65C+, SG18, SE18, SSH75, fryer batteries shipped with (2) per fryer

Factory note on export units

NOTE: For application or installation outside of the U.S. (Contact factory for quote)

Controls

(D) Digital Controller +$302.00 (SSTC) Solid State Controller, standard (VS7) 7" Touch Screen Controller (per fryer) +$2,925.00 One Touch 10" Touchscreen Controller (HLUI) (per fryer) +$3,337.00

Smart features

SOS (requires I12 Computer, VS7 or One Touch Controller) +$3,633.00 Intellifry Computer Controller (I12) (per fryer) +$1,800.00 Auto Filtration (AF) (per fryer) (requires I12 Computer or One Touch controller and must include Smart Pump & Drain) +$3,602.00

Stainless steel back

Stainless steel back +$567.00

Built-in filtration system

Piping charge for fryer to add to an EXISTING filter drawer, SoloFilter or BNB +$1,013.00 Solstice™ Filter Drawer System, filter drawer design, add suffix /FD to model #, for five fryers, (split tanks = two fryers), NSF, CE, CSA Flame, CSA Star, AuGA +$14,711.00 Solstice™ Filter Drawer System, filter drawer design, add suffix /FD to model #, for four fryers, (split tanks = two fryers), NSF, CE, CSA Flame, CSA Star, AuGA +$13,699.00 Solstice™ Filter Drawer System, filter drawer design, add suffix /FD to model #, for one fryer, (split tanks = two fryers), NSF, CE, CSA Flame, CSA Star, AuGA +$10,660.00 Solstice™ Filter Drawer System, filter drawer design, add suffix /FD to model #, for six fryers, (split tanks = two fryers), NSF, CE, CSA Flame, CSA Star, AuGA +$15,724.00 Solstice™ Filter Drawer System, filter drawer design, add suffix /FD to model #, for three fryers, (split tanks = two fryers), NSF, CE, CSA Flame, CSA Star, AuGA +$12,686.00 Solstice™ Filter Drawer System, filter drawer design, add suffix /FD to model #, for two fryers, (split tanks = two fryers), NSF, CE, CSA Flame, CSA Star, AuGA +$11,673.00 Waste oil piping connection +$1,013.00

Mounting options

9" legs, standard

Voltage (Fryer)

208v/50/60/1-ph, 106.0 amps, 22 kW, DIRECT 208v/50/60/3-ph, 62.0 amps, 22 kW, DIRECT 220v/50/60/1-ph, 100.0 amps, 22 kW, DIRECT 220v/50/60/3-ph, 58.0 amps, 22 kW, DIRECT 240v/50/60/1-ph, 92.0 amps, 22 kW, DIRECT 240v/50/60/3-ph, 53.0 amps, 22 kW, DIRECT 480v/50/60/3-ph, 27.0 amps, 22 kW, DIRECT +$732.00 380/220v/50/60/3-ph, 22 kW, "Y", DIRECT, (contact factory) 415/240v/50/60/3-ph, 22 kW, "Y", DIRECT, (contact factory)

What is included

General Warranty: 1 year parts and labor warranty from the date of installation up to a maximum of 15 months from the date of manufacture (with appropriate documentation), standard

Brand	Pitco Frialator
Energy Efficiency	Energy Star
Certifications	CE, NSF, UL
Number of Fry Pots	1
Capacity	60 Lb
Heat	Electric
Voltage	208 Volts
Wattage	22.0 Kilowatts
Width (in)	19.63
Height (in)	39.75
Depth (in)	38.41
Weight	226.00
