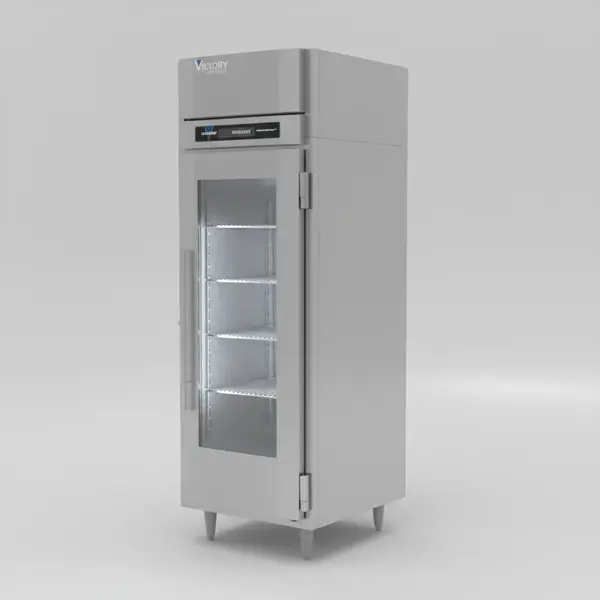

Victory Refrigeration FSA-1D-S1-PT-HC

Description

The Victory Refrigeration FSA-1D-S1-PT-HC is a high-performance pass-thru freezer designed for efficiency and durability. Part of the UltraSpec™ Series, this one-section unit features a spacious 22.90 cu. ft. capacity, making it ideal for busy kitchens. It is equipped with two full-height solid hinged doors for easy access and three chrome-style silver freeze shelves for optimal organization. Constructed with a stainless steel exterior and aluminum interior, this freezer combines strength with a sleek appearance. The standard depth cabinet fits seamlessly into various kitchen layouts. Advanced TOUCH POINT™ electronic temperature control and indicator ensure precise temperature management, while LED lighting enhances visibility inside the unit. Utilizing expansion valve technology and R290 Hydrocarbon refrigerant, the FSA-1D-S1-PT-HC operates efficiently with a powerful 3/4 HP compressor. The Santoprene door gaskets provide a tight seal, enhancing energy efficiency. This unit is cULus, UL EPH Classified, and UL-Sanitation certified, ensuring it meets high safety and sanitation standards. Proudly made in the USA, it is built to withstand the demands of commercial environments.

Options

Control/Kitchen side door hinging

Control/Kitchen side door hinging: field-reversible +$205.22 Control/Kitchen side door hinging: standard on right Control/Kitchen side door hinging: on left at factory

FlexTemp

FlexTemp Control Option (0° - 20°F), capable of set points between 0° to 20°F with positive defrost cycles (add -FLEX to end of model number) +$492.00

Rear/Server side door hinging

Rear/Server side door hinging: field-reversible +$205.22 Rear/Server side door hinging: on right standard Rear/Server side door hinging: on left on rear at factory

Mounting options

3" Casters, in lieu of standard 6" stainless steel legs, no charge when specified on order 6" Casters, in lieu of standard 6" stainless steel legs, no charge when specified on order 6" Seismic Legs (set of 4) +$178.51 Legs, set of 4, 6" high adjustable stainless steel, standard

Cabinet options

Louvered upper case ends - each +$184.61 Stainless steel case back - with stainless steel rear air grille, for reach-in models +$442.96 Tie-in (banking) strips - each +$144.27 Front Kick Plate (per side on pass-thru models) +$162.26 Heat shield, left side +$820.02 Heat shield, right side +$820.02 Exterior laminate (contact factory for pricing)

Interior options

Type "A" Tray Slide Pair, 1 tray slide set for (1) 18" x 26" or (2) 14" x 18" pans +$49.63 Type "A/C" Tray Slide Pair, 1 tray slide set for (1) 18" x 26" or (2) 14" x 18" or (2) 12" x 20" Pans +$84.76 Silver Freeze Shelf, for "A" tray slides (chrome-style) +$71.41 Silver Freeze Shelf (chrome-style) +$124.54 Silver Freeze Shelf, for A/C & steel rod tray slides (chrome-style) +$45.29 NOTE: For retrofit tray slide kit information please contact your dedicated Victory customer service team

Refrigeration

Remote refrigeration system by others (part # -R) (TO BE SUPPLIED BY OTHERS)

Delivery

Lift gate delivery, per load (Required if there is no dock at the location or if there is no forklift onsite to take the unit(s) off the truck) +$76.00 Limited access (Required if delivery is needed outside of M-F 8-5) +$95.00 Notification (call before) (Required if there is a chance there will not be someone onsite to accept delivery M-F 8-5) +$20.90 Theshold Delivery: Driver will deliver and place unit at the exterior threshold.Unit will not be placed inside building. +$26.93 If a top extension of 93" or more is requested AND liftgate delivery is needed then this unit will require flatbed delivery +$253.98 Threshold Delivery: Driver will deliver and place unit at the exterior threshold.Unit will not be placed inside building. +$29.03 Residential delivery +$95.00

Door options

Control/Kitchen side: Half doors in lieu of standard full door, one-section +$164.29 Control/Kitchen side: Standard Glass door in lieu of standard solid door, one-section +$633.66 Rear/Server side: Half doors in lieu of standard full door, one-section +$164.29 Rear/Server side: Standard Glass door in lieu of standard solid door, one-section +$633.66

What is included

Voltage: 115v/60/1-ph, 9.1 amps, with cord & NEMA 5-15P
Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)

Reviews

There are no reviews yet for this product.

Brand	Victory Refrigeration
Refrigerant Type	R-404A
Made in	USA
Certifications	cULus, UL, UL EPH, UL EPH Classified, UL-Sanitation
Half Doors	No
Number of Doors	2
Hinge Location	Right
Construction	Stainless Steel and Aluminum
Freezer Capacity	22.9 cu. ft.
Capacity	11 - 30 cu. ft.
Compressor Location	Top Mounted
Door Type	Solid
Sections	1
Temperature Range	-10 Degrees F
Width (in)	26.50
Height (in)	84.13
Depth (in)	38.75
Weight	358.00
